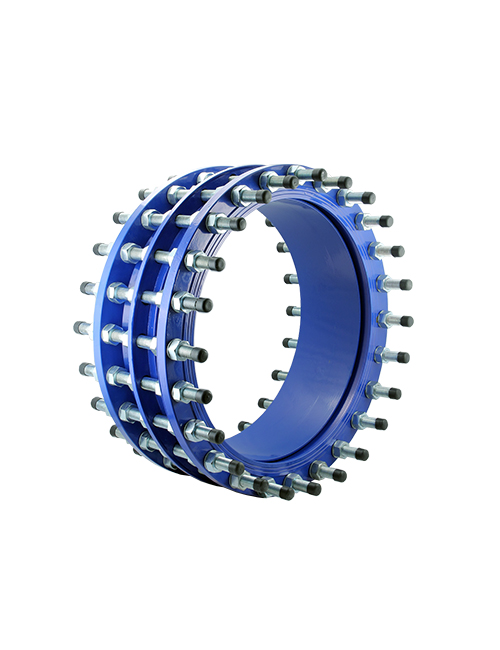

ACMO dismantling joints are designed to compensate for axial displacement of a pipe during installation and dismantling. This provides for easy installation and disassembly of flanged pipe work and fittings or flanged equipment such as valves, metersand pumps.
EN 1092-1 DRILLING FLANGES CARBON STEEL
EN 1092-2 DRILLING FLANGES DUCTILE IRON
PN 10-16-25-40-64
DN 40÷2600
FIG. 4000NR-4000NRI-4016NR-4016NRI–4025R-4025RI-4040-4064-4040I-4064I
BODY
PN10-16-25 – EN GJS-500-7 DUCTILE IRON EN 1563
PN40-64 – S235JR CARBON STEEL EN 10025-1
FLANGE
PN10-16-25 – EN GJS-500-7 DUCTILE IRON EN 1563
PN40-64 – S235JR CARBON STEEL EN 10025-1
GASKET EPDM EN 681-1
BOLTS
FIG.4000NR-4016NR-4025R-4040-4065 – GALVANIZED STEEL CL.4.8 EN 898-1
FIG.4000NRI-4016NRI-4025RI-4040I-4064I – A2-70 STAINLESS STEEL
COATED INSIDE-OUTSIDE
(FBE) EPOXY 150 MICRONS
D.M. NR.174 – HEALTH DEPARTMENT (I)
WATER
EN 12266-1 (ISO 5208) PRESSURE TESTS
