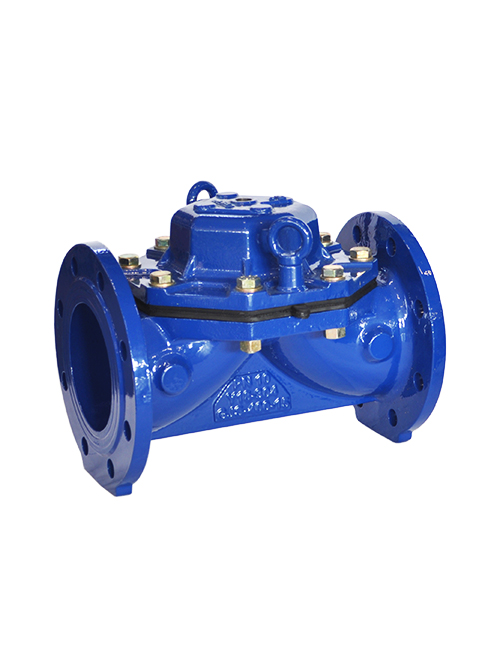

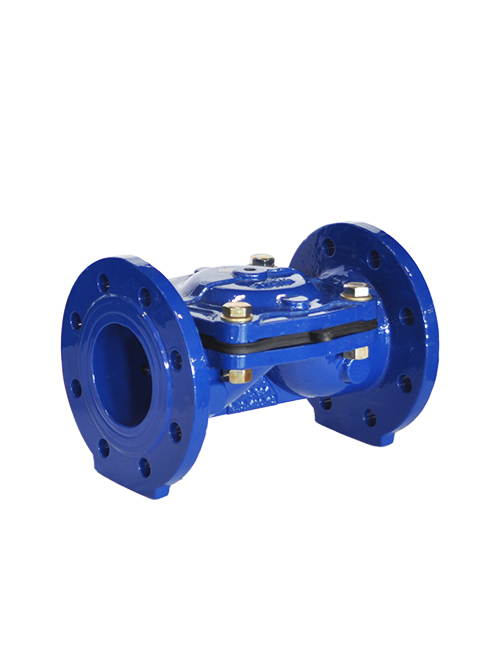

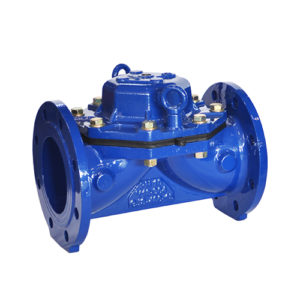

Diaphragm control valves series MD

PN 10-16-25
DN 50÷300
FIG. 910÷921

BODY FONTE DUCTILE EN GJS-400 EN 1563 (ISO 945)
COVER FONTE DUCTILE EN GJS-400 EN 1563 (ISO 945)
DIAPHRAGM NATURAL RUBBER EN 681-1
BOLTS GALVANIZED STEEL EN 898-1

COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS

D.M. NR. 174 – HEALTH DEPARTMENT (I)

DRINKABLE WATER
IRRIGATION

EN 12266-1 (ISO 5208) PRESSURE TESTS
GRADE “A”

MD100 PRESSURE REDUCING
MD200 PRESSURE SUSTAINING
MD300 PRESSURE RELIEF
MD305 SURGE ANTICIPATOR PRESSURE RELIEF
MD400 FLOW CONTROL VALVE
MD500 LEVEL CONTROL WITH FLOAT
MD600 MIN-MAX LEVEL CONTROL WITH FLOAT

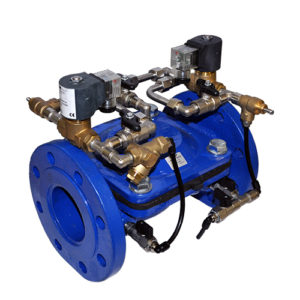

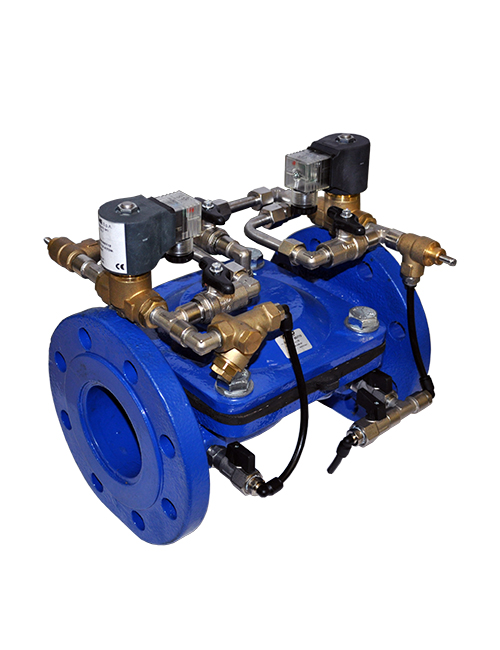

MD700 SECTIONING WITH ELECTRIC CONTROL
MD800 PIEZOMETRIC LEVEL CONTROL
