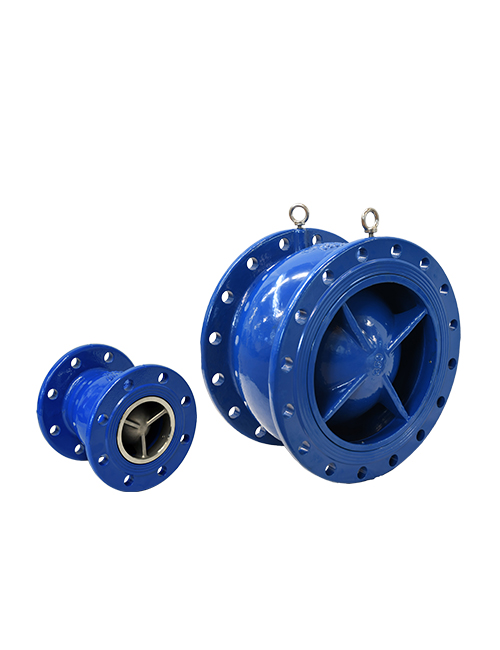

The ACMO spring loaded nozzle check valve is a reliable, fast reacting blocker of reverse flow in water pipes. In case of pump stop the spring loaded valve cone will make sure the water flow is shut off swiftly and quietly before it can change direction and cause water hammer. All metal parts are made of either stainless steel or epoxy coated ductile iron.
EN 1074-1 VALVES FOR WATER SUPPLY
EN 1074-3 CHECK VALVES
EN 558 S14 (ISO 5752) DIN 3202 F4 FACE TO FACE
EN 1092-2 DRILLING FLANGES
PN 10-16-25-40
DN 50÷1600
FIG. 525HSCV-525AHSCV-526HSCV-527HSCV
BODY DUCTILE IRON EN GJS-500-7 EN 1563
STEM STAINLESS STEEL AISI316 EN 10088-3
SCREW STAINLESS STEEL A4
COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS
WATER
EN 12266-1 (ISO 5208) PRESSURE TESTS
GRADE “A”
